DataTable2#

Enhanced data table for Flet that adds sticky headers, fixed rows/columns, and other UX improvements via the flet-datatable2 extension.

It wraps the Flutter data_table_2 package.

Platform Support#

Platform Windows macOS Linux iOS Android Web
Supported ✅ ✅ ✅ ✅ ✅ ✅

Usage#

Add flet-datatable2 to your project dependencies:

uv add flet-datatable2

pip install flet-datatable2  # (1)!
  1. After this, you will have to manually add this package to your requirements.txt or pyproject.toml.

Example#

import flet_datatable2 as fdt

import flet as ft


def main(page: ft.Page):
    page.add(
        fdt.DataTable2(
            empty=ft.Text("This table is empty."),
            columns=[
                fdt.DataColumn2(label=ft.Text("First name")),
                fdt.DataColumn2(label=ft.Text("Last name")),
                fdt.DataColumn2(label=ft.Text("Age"), numeric=True),
            ],
        ),
    )


ft.run(main)

import flet_datatable2 as ftd
from data import desserts

import flet as ft


def main(page: ft.Page):
    page.vertical_alignment = ft.MainAxisAlignment.CENTER
    page.horizontal_alignment = ft.CrossAxisAlignment.CENTER

    def handle_row_selection_change(e: ft.Event[ftd.DataRow2]):
        e.control.selected = not e.control.selected
        e.control.update()

    def sort_column(e: ft.DataColumnSortEvent):
        print(f"Sorting column {e.column_index}, ascending={e.ascending}")

    def get_data_columns():
        data_columns = [
            ftd.DataColumn2(
                label=ft.Text("Name"),
                size=ftd.DataColumnSize.L,
                on_sort=sort_column,
                heading_row_alignment=ft.MainAxisAlignment.START,
            ),
            ftd.DataColumn2(
                label=ft.Text("Calories"),
                on_sort=sort_column,
                numeric=True,
                heading_row_alignment=ft.MainAxisAlignment.END,
            ),
            ftd.DataColumn2(
                label=ft.Text("Fat"),
                on_sort=sort_column,
                numeric=True,
            ),
            ftd.DataColumn2(
                label=ft.Text("Carbs"),
                on_sort=sort_column,
                numeric=True,
            ),
            ftd.DataColumn2(
                label=ft.Text("Protein"),
                on_sort=sort_column,
                numeric=True,
            ),
            ftd.DataColumn2(
                label=ft.Text("Sodium"),
                on_sort=sort_column,
                numeric=True,
            ),
            ftd.DataColumn2(
                label=ft.Text("Calcium"),
                on_sort=sort_column,
                numeric=True,
            ),
            ftd.DataColumn2(
                label=ft.Text("Iron"),
                on_sort=sort_column,
                numeric=True,
            ),
        ]
        return data_columns

    def get_data_rows(desserts):
        data_rows = []
        for dessert in desserts:
            data_rows.append(
                ftd.DataRow2(
                    specific_row_height=50,
                    on_select_change=handle_row_selection_change,
                    cells=[
                        ft.DataCell(content=ft.Text(dessert.name)),
                        ft.DataCell(content=ft.Text(dessert.calories)),
                        ft.DataCell(content=ft.Text(dessert.fat)),
                        ft.DataCell(content=ft.Text(dessert.carbs)),
                        ft.DataCell(content=ft.Text(dessert.protein)),
                        ft.DataCell(content=ft.Text(dessert.sodium)),
                        ft.DataCell(content=ft.Text(dessert.calcium)),
                        ft.DataCell(content=ft.Text(dessert.iron)),
                    ],
                )
            )
        return data_rows

    page.add(
        ftd.DataTable2(
            show_checkbox_column=True,
            expand=True,
            column_spacing=0,
            heading_row_color=ft.Colors.SECONDARY_CONTAINER,
            horizontal_margin=12,
            sort_ascending=True,
            bottom_margin=10,
            min_width=600,
            on_select_all=lambda e: print("All selected"),
            columns=get_data_columns(),
            rows=get_data_rows(desserts),
        ),
    )


ft.run(main)

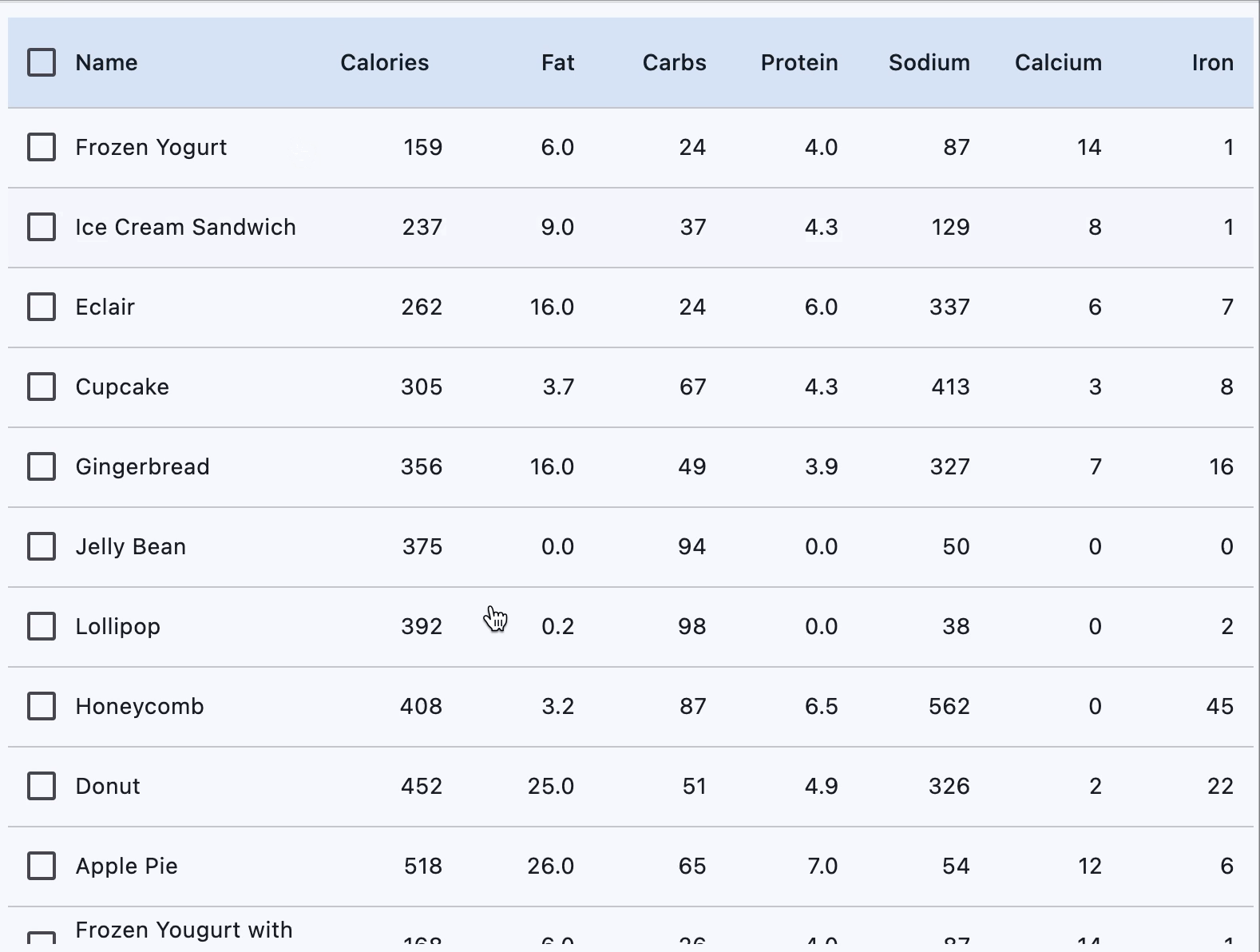

DataTable2 example

Description#

Inherits: DataTable

Provides sticky header row, scrollable data rows, and additional layout flexibility with DataColumn2 and DataRow2.

Note

DataTable2 doesn't support DataTable.data_row_min_height and DataTable.data_row_max_height properties present in the parent DataTable. Use data_row_height instead.

Properties

Properties#

bottom_margin class-attribute instance-attribute #

bottom_margin: Number | None = None

Adds space after the last row if set.

checkbox_alignment class-attribute instance-attribute #

checkbox_alignment: Alignment = field(
    default_factory=lambda: CENTER
)

Alignment of the checkbox.

columns instance-attribute #

columns: list[DataColumn2 | DataColumn]

A list of table columns.

data_row_checkbox_theme class-attribute instance-attribute #

data_row_checkbox_theme: CheckboxTheme | None = None

Overrides theme of checkboxes in each data row.

data_row_height class-attribute instance-attribute #

data_row_height: Number | None = None

Height of each data row.

data_row_max_height class-attribute instance-attribute #

data_row_max_height: None = field(
    init=False,
    repr=False,
    compare=False,
    metadata={"skip": True},
)

data_row_min_height class-attribute instance-attribute #

data_row_min_height: None = field(
    init=False,
    repr=False,
    compare=False,
    metadata={"skip": True},
)

empty class-attribute instance-attribute #

empty: Control | None = None

Placeholder control shown when there are no data rows.

fixed_columns_color class-attribute instance-attribute #

fixed_columns_color: ColorValue | None = None

Background color for sticky left columns.

fixed_corner_color class-attribute instance-attribute #

fixed_corner_color: ColorValue | None = None

Background color of the fixed top-left corner cell.

fixed_left_columns class-attribute instance-attribute #

fixed_left_columns: int = 0

Number of sticky columns on the left. Includes checkbox column, if present.

fixed_top_rows class-attribute instance-attribute #

fixed_top_rows: int = 1

Number of sticky rows from the top. Includes heading row by default.

heading_checkbox_theme class-attribute instance-attribute #

heading_checkbox_theme: CheckboxTheme | None = None

Overrides theme of the heading checkbox.

lm_ratio class-attribute instance-attribute #

lm_ratio: Number = 1.2

Ratio of Large column width to Medium.

min_width class-attribute instance-attribute #

min_width: Number | None = None

Minimum table width before horizontal scrolling kicks in.

rows class-attribute instance-attribute #

rows: list[DataRow | DataRow2] = field(default_factory=list)

A list of table rows.

show_heading_checkbox class-attribute instance-attribute #

show_heading_checkbox: bool = True

Controls visibility of the heading checkbox.

sm_ratio class-attribute instance-attribute #

sm_ratio: Number = 0.67

Ratio of Small column width to Medium.

sort_arrow_animation_duration class-attribute instance-attribute #

sort_arrow_animation_duration: DurationValue = field(
    default_factory=lambda: Duration(milliseconds=150)
)

Duration of sort arrow animation.

sort_arrow_icon class-attribute instance-attribute #

sort_arrow_icon: IconData = ARROW_UPWARD

Icon shown when sorting is applied.

sort_arrow_icon_color class-attribute instance-attribute #

sort_arrow_icon_color: ColorValue | None = None

When set always overrides/preceeds default arrow icon color.

visible_horizontal_scroll_bar class-attribute instance-attribute #

visible_horizontal_scroll_bar: bool | None = None

Determines visibility of the horizontal scrollbar.

visible_vertical_scroll_bar class-attribute instance-attribute #

visible_vertical_scroll_bar: bool | None = None

Determines visibility of the vertical scrollbar.
