ReorderableListView

A scrollable list of controls that can be reordered.

Inherits: ListView

Properties

Events

Examples#

Live example

Horizontal and Vertical#

import flet as ft


def main(page: ft.Page):
    # the primary color is the color of the reorder handle
    page.theme = page.dark_theme = ft.Theme(
        color_scheme=ft.ColorScheme(primary=ft.Colors.BLUE)
    )

    def handle_reorder(e: ft.OnReorderEvent):
        e.control.controls.insert(e.new_index, e.control.controls.pop(e.old_index))

    get_color = lambda i: (
        ft.Colors.ERROR if i % 2 == 0 else ft.Colors.ON_ERROR_CONTAINER
    )

    page.add(
        # horizontal
        ft.ReorderableListView(
            expand=True,
            horizontal=True,
            on_reorder=handle_reorder,
            controls=[
                ft.Container(
                    content=ft.Text(f"Item {i}", color=ft.Colors.BLACK),
                    bgcolor=get_color(i),
                    margin=ft.Margin.symmetric(horizontal=5, vertical=10),
                    width=100,
                    alignment=ft.Alignment.CENTER,
                )
                for i in range(10)
            ],
        ),
        # vertical
        ft.ReorderableListView(
            expand=True,
            on_reorder=handle_reorder,
            controls=[
                ft.ListTile(
                    title=ft.Text(f"Item {i}", color=ft.Colors.BLACK),
                    leading=ft.Icon(ft.Icons.CHECK, color=ft.Colors.RED),
                    bgcolor=get_color(i),
                )
                for i in range(10)
            ],
        ),
    )


ft.run(main)

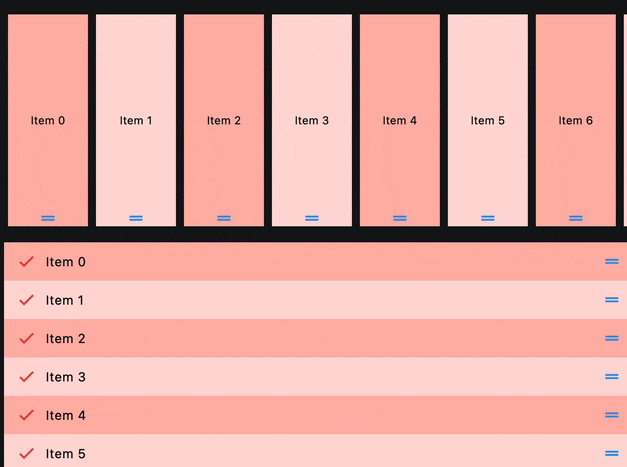

horizontal-and-vertical

Custom drag handle#

See this.

Properties#

anchor class-attribute instance-attribute #

anchor: Number = 0.0

The relative position of the zero scroll offset.

auto_scroller_velocity_scalar class-attribute instance-attribute #

auto_scroller_velocity_scalar: Number | None = None

The velocity scalar per pixel over scroll. It represents how the velocity scale with the over scroll distance. The auto-scroll velocity = (distance of overscroll) * velocity scalar.

cache_extent class-attribute instance-attribute #

cache_extent: Number | None = None

The viewport has an area before and after the visible area to cache items that are about to become visible when the user scrolls.

Items that fall in this cache area are laid out even though they are not (yet) visible on screen. The cache_extent describes how many pixels the cache area extends before the leading edge and after the trailing edge of the viewport.

The total extent, which the viewport will try to cover with children, is cache_extent before the leading edge + extent of the main axis + cache_extent after the trailing edge.

The cache area is also used to implement implicit accessibility scrolling on iOS: When the accessibility focus moves from an item in the visible viewport to an invisible item in the cache area, the framework will bring that item into view with an (implicit) scroll action.

clip_behavior class-attribute instance-attribute #

clip_behavior: ClipBehavior = HARD_EDGE

The content will be clipped (or not) according to this option.

controls class-attribute instance-attribute #

controls: list[Control] = field(default_factory=list)

The controls to be reordered.

first_item_prototype class-attribute instance-attribute #

first_item_prototype: bool = False

True if the dimensions of the first item should be used as a "prototype" for all other items, i.e. their height or width will be the same as the first item.

footer class-attribute instance-attribute #

footer: Control | None = None

A non-reorderable footer item to show after the controls.

header class-attribute instance-attribute #

header: Control | None = None

A non-reorderable header item to show before the controls.

horizontal class-attribute instance-attribute #

horizontal: bool = False

Whether the controls should be laid out horizontally.

item_extent class-attribute instance-attribute #

item_extent: Number | None = None

If non-null, forces the children to have the given extent in the scroll direction.

Specifying an item_extent is more efficient than letting the children determine their own extent because the scrolling machinery can make use of the foreknowledge of the children's extent to save work, for example when the scroll position changes drastically.

mouse_cursor class-attribute instance-attribute #

mouse_cursor: MouseCursor | None = None

TBD

padding class-attribute instance-attribute #

padding: PaddingValue | None = None

The amount of space by which to inset the controls.

reverse class-attribute instance-attribute #

reverse: bool = False

Whether the scroll view scrolls in the reading direction.

For example, if the reading direction is left-to-right and horizontal is True, then the scroll view scrolls from left to right when reverse is False and from right to left when reverse is True.

Similarly, if horizontal is False, then the scroll view scrolls from top to bottom when reverse is False and from bottom to top when reverse is True.

show_default_drag_handles class-attribute instance-attribute #

show_default_drag_handles: bool = True

TBD

Events#

on_reorder class-attribute instance-attribute #

on_reorder: EventHandler[OnReorderEvent] | None = None

Called when a child control has been dragged to a new location in the list and the application should update the order of the items.

on_reorder_end class-attribute instance-attribute #

on_reorder_end: EventHandler[OnReorderEvent] | None = None

Called when the dragged item is dropped.

on_reorder_start class-attribute instance-attribute #

on_reorder_start: EventHandler[OnReorderEvent] | None = None

Called when an item drag has started.
